Maxium payload 10 kg with maxium reach 600 mm Scara Robot Global Supply

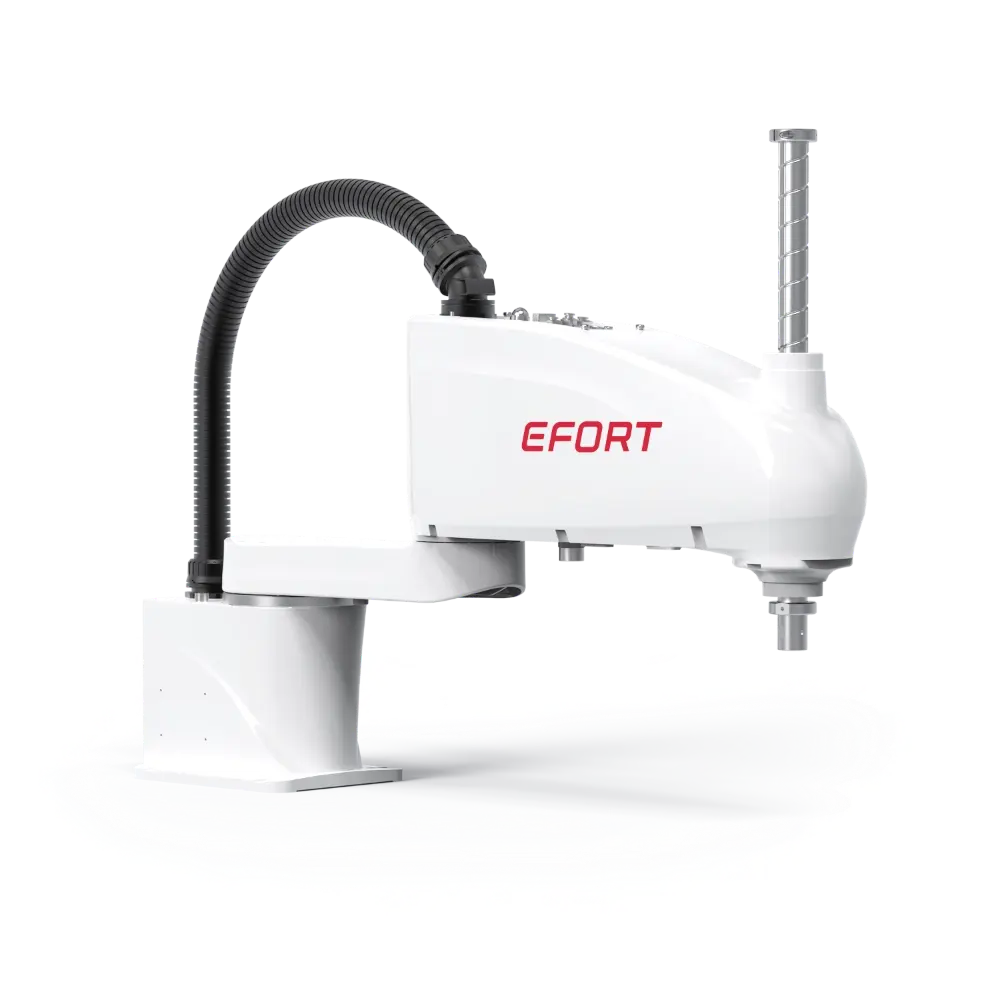

Scara Robot ESR10-600Z20
- description
- Specifications
- Product structure diagram
-
description
Highlights
1. High rhythm and high precision
The fastest standard cycle time can reach 0.36 s, and the robot positioning accuracy can reach 0.02 mm.
2. High rigidity and low vibration
Robot body mode and rigidity enhancement, combined with vibration suppression and active vibration suppression functions, effectively reduce vibration.
3. Easy to maintain and scalable
The detachable structure of cables and batteries allows for the replacement of robots inside the device, and the built-in camera network cable enables various communication extensions.
Applications
It can be used in handling, sorting, assembly, etc.
Industries
Suitable for industries such as electronic manufacturing, lithium batteries, automotive electronics, and photovoltaics.
-
Specifications
Model
ESR10-600Z20 Reach 600 mm Max. payload on wrist
Rated
5 kg Maximum
10 kg Robot weight
22 kg Maximum speed
J1+J2 9100 mm/sec
J3 1500 mm/sec J4 2500°/sec Motion range
J1 ±132°
J2 ±150°
J3 200mm J4 ±360°
Repeatability
J1+J2 ±0.02 mm
J3 ±0.01 mm J4 ±0.01°
Standard cycle time
0.36s
J4 allowable
moment of inertia
Rated 0.02 kg·m²
Maximum 0.3 kg·m²
Electric lines
D-Sub 15-Pin
Pneumatic lines
φ4 mmx1,φ6 mmx2
J3 downward force
200 N Installation
Floor
Installation enviroment
Ambient temperature
5~40℃
Ambient humidity
RH≤80%（No dew nor frost allowed）
-

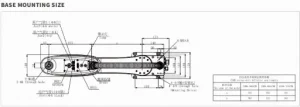

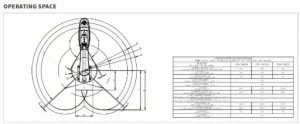

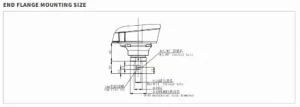

Product structure diagram
